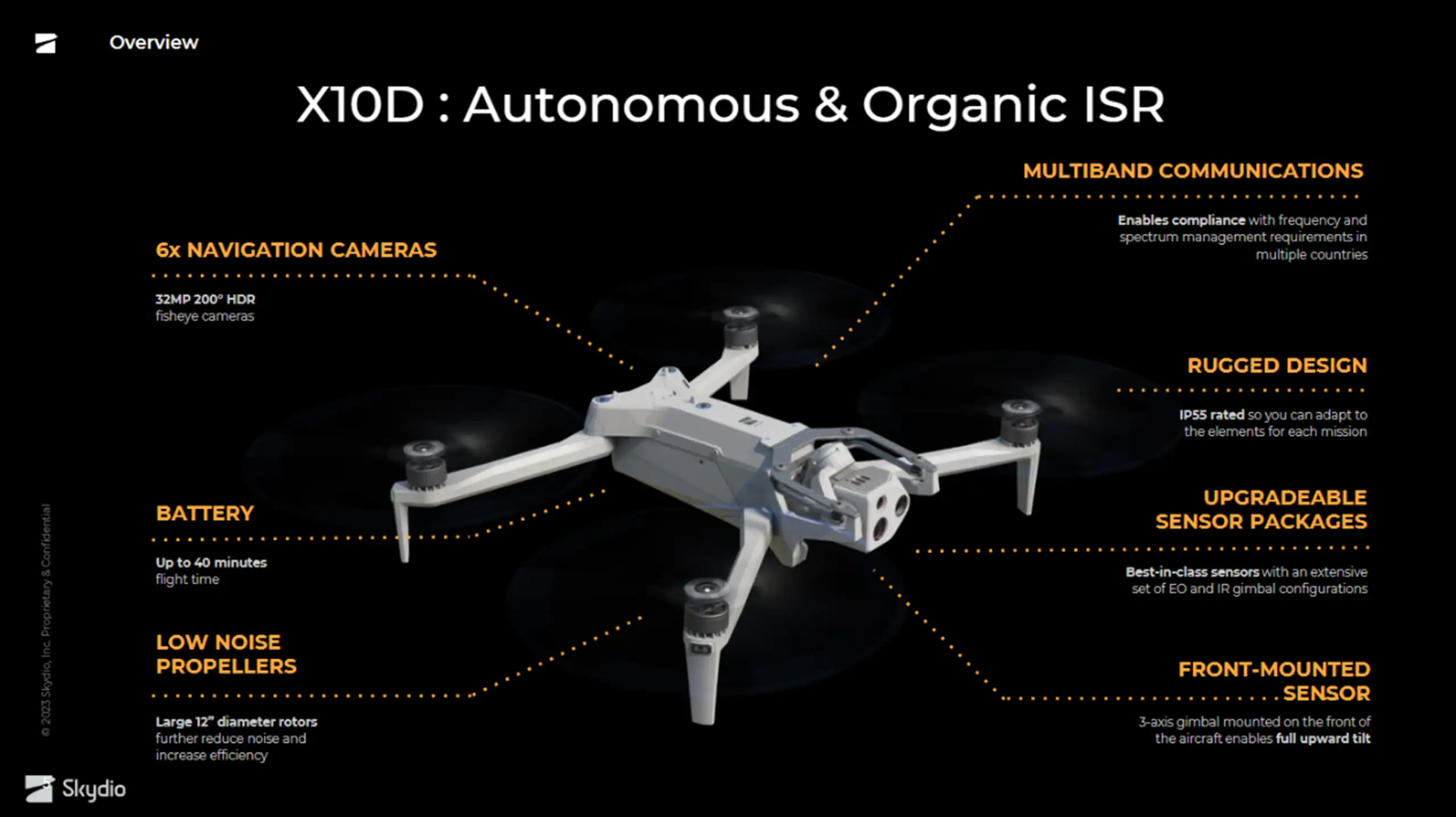

Skydio X10D
Skydio X10 D Revolutionizing Remote Operations
The best sensors for a drone this small, piloted by the most advanced AI in the sky. To get the data you need, wherever and whenever you need it.
Features:
Spotlight
Improve visibility during night ops
Speaker and mic
Communicate and coordinate better in high-risk situations
NightSense
Conduct autonomous flight in the dark: visible or IR
Parachute
Enable safer operations over crowds or moving vehicles.
Technical Specs Aircraft
Startup Time Under 40 seconds
Dimensions (unfolded, with propellers) 31.1” x 25.6” x 5.7”
Dimensions (folded, without battery) 13.8” x 6.5” x 4.7”
Weight (incl. batteries) Connect SL: 2.11 kg / 4.65 lbs
Connect MH: 2.14 kg / 4.72 lbs
Max Takeoff Weight 2.49 kg / 5.49 lbs
Operation Frequency Connect SL: 2400-2483.5MHz
5150-5850Mhz
Connect MH:
1790-1850MHz
2040-2110MHz
2200-2300MHz
2300-2390MHz
2400-2500MHz
Transmitter Power (EIRP) Connect SL: 34.3dBmi (2.4GHZ)
Connect SL: 33.7dBmi (5GHZ)
Connect MH: 38dBmi
Hovering Accuracy (windless or breezy) VIO: +/- 10cm
GNSS: +/- 1m
Max Angular Velocity Yaw: 100 deg/s
Roll / Pitch: 225 deg/s
Max Tilt Angle 40 degrees
Max Ascent/Decent Speed Ascent: 6 m/s / 13.4mph
Descent: 4 m/s / 9.0mph
Max Non-Vertical Descent Speed 6 m/s / 13.4mph
Max Horizontal Speed (at sea level) 20 m/s / 45mph
Max Horizontal Speed with Obstacle Avoidance 16 m/s / 36mph
Max Service Ceiling Above Sea Level (without other payload) 15,000 ft density altitude
Max Gust Handling At or under 12.8 m/s / 28 mph
Max Hover Time 35 minutes
Max Flight Time* 40 minutes
Processors NVIDIA Jetson Orin SoC
Qualcomm QRB5165 SoC
Ingress Protection Rating IP55
GNSS GPS + Galileo + GLONASS + BeiDou
Geofence limitations No
Operational Temperature Range -20C to +45C / -4F to 113F
Wireless Range (no interference, line of sight operation) Connect SL: 12km / 7.5 miles
Connect MH: 10km / 6.2 miles
Wireless Networking (media offload) N/A
Obstacle Avoidance Coverage True 360°
Technical Specs Controller
Controller Dimensions 10.5″ x 5″ x 3″
Screen 6.6″ Dynamic AMOLED touchscreen
120Hz Adaptive Refresh Rate
Resolution: 2340 x 1080 pixels
Brightness: 1750 nits (outdoor peak)
392ppi
Dimensions 10.5″ x 5″ x 3″
Weight 1135 grams
Max Range Connect SL: 12km / 7.5 miles
Connect MH: 10km / 6.2 miles
Operating Frequencies Connect SL: 2400-2483.5MHz
5150-5850MHz
Connect MH: 1625-1725MHz
1790-1850MHz
2040-2110MHz
2200-2300MHz
2300-2390MHz
2400-2500MHz
Transmitter Power (EIRP) Connect SL: 34.7dBmi (2.4GHz)
Connect SL: 35.9dBmi (5GHz)
Connect MH: 38dBmi
Ingress Protection Rating IP54
Operating Time Approx. 5 hours
Battery 9600mAH
GNSS GPS + Galileo + GLONASS + BeiDou
Geofence limitations No
Operational Temperature Range -20C to 45C
Wired Outputs HDMI & USB-C
Wireless Networking N/A
Security On the Blue UAS Cleared list
NDAA compliant
AES-256 encrypted data link
Encrypted internal disk storage
Password protected
Root of trust
Trusted boot
Secure update
Technical Specs VT300-Z and VT300-L Sensor Packages
Angular Vibration Range +/-0.01°
User Controllable Range +/-90° pitch
Mechanical Range +/-140° pitch, +/-90° yaw, +75° to -230° roll
Technical Specs Telephoto Camera
Sensor 1/2″ 48MP CMOS
Diagonal Field of View 13°
Focal Length 35 mm (190 mm equivalent)
Aperture f/2.2
Focus hybrid PDAF, 5 m to ∞
Exposure Compensation +-3
Electronic Shutter Speed 1/30 to 1/8000
ISO Range 100 to 16000
Max Video Resolution 3840 x 2880
Max Photo Size 8000 x 6000
Technical Specs Wide Camera
Sensor 1″ 50.3MP CMOS
Diagonal Field of View 93°
Focal Length 8 mm (20 mm equivalent)
Aperture f/1.95
Focus 100% focus pixel, 1 m to ∞
Exposure Compensation +-3
Electronic Shutter Speed 1/30 to 1/8000
ISO Range 100 to 16000
Max Video Resolution 3840 x 2880
Max Photo Size 8192 x 6144
Technical Specs Narrow Camera
Sensor 1/1.7″ 64MP CMOS
Diagonal Field of View 50°
Focal Length 10 mm (46 mm equivalent)
Aperture f/1.8
Focus hybrid PDAF, 1 m to ∞
Exposure Compensation +-3
Electronic Shutter Speed 1/30 to 1/8000
ISO Range 100 to 16000
Max Video Resolution 3840 x 2880
Max Photo Size 9248 x 6944
Technical Specs Thermal Camera
Thermal Imager Flir Boson+ Uncooled VOx Microbolometer
Diagonal Field of View 41°
Focal Length 13.6 mm (60 mm equivalent)
Aperture f/1.0
Focus 5 m to ∞
Thermal Sensitivity <30mK NEDT
Infrared Temperature Measurement Accuracy larger of +- 5°C or 5%
Image Processing Adreno 650 GPU accelerated ISP pipeline
Max Video Resolution 640 x 512
Photo Size 640 x 512
Photo Format JPEG, RJPEG
Pixel Pitch 12 um
Temperature Measurement Method Spot Meter, Area Measurement
Temperature Measurement Range -40° to 150° C (-40° to 350° C low gain)
Palette White hot, black hot, ironbow, rainbow
Technical Specs Sensor Package Light
Illumination 1000 lumens
Technical Specs Vision Systems / Navigation Cameras
Configuration 6x cameras in trinocular configuration top and bottom
Sensor Samsung 1/2.8″ 32MP color CMOS
Light Sensitivity Visible Light
Aperture f/1.8
Diagonal Field of View 200°
Obstacle Sensing Range 20 meters
Environment Coverage True 360°
Technical Specs Flight Battery
Capacity 8419 mAh
Voltage 18.55 V
Battery Type Rechargeable Lithium Ion Polymer
Energy 156.17 Wh
Net Weight 1.56 lbs +/- 0.003 lbs
Operational Temperature Range -20C to 60C
Storage Temperature Range -20C to +45C (storage less than 3 months)
Charging Temperature Range 5C to 45C
Chemical System Lithium Ion Polymer
Technical Specs Skydio Connect
Operating Frequency Connect SL: 2400-2483.5MHz
5150-5850MHz
Connect MH: 1625-1725MHz
1790-1850MHz
2040-2110MHz
2200-2300MHz
2300-2390MHz
2400-2500MHz
Transmitter Power (EIRP) Connect MH: 38dBmi
Antenna Configuration Connect SL: 2Tx, 4Rx
Connect MH: 2×2
Technical Specs System Security
Wireless Encryption Connect SL: AES-256
Connect MH: AES-256
Blue UAS list On the Blue UAS list, and approved by the DoD
NDAA Compliance NDAA Compliant
Root of Trust HSM protected keys
System Integrity Secure boot
Secure Update AES-256 encrypted, signed, & verified
Internal Disk Storage Encrypted
SD Cards Encrypted
Pairing Secure wired pairing
Technical Specs Dual Charger
Dimensions 180 x 75 x 48mm
Weight (w/o Battery) 0.73 lbs
Charge Time 230W 1 hour (0-100%)
35 minutes (20-90%)
Charge Time 100W 1 hour 45 minutes (0-100%)
1 hour 10 minutes (20-90%)
Weatherproofing No ingress protection
