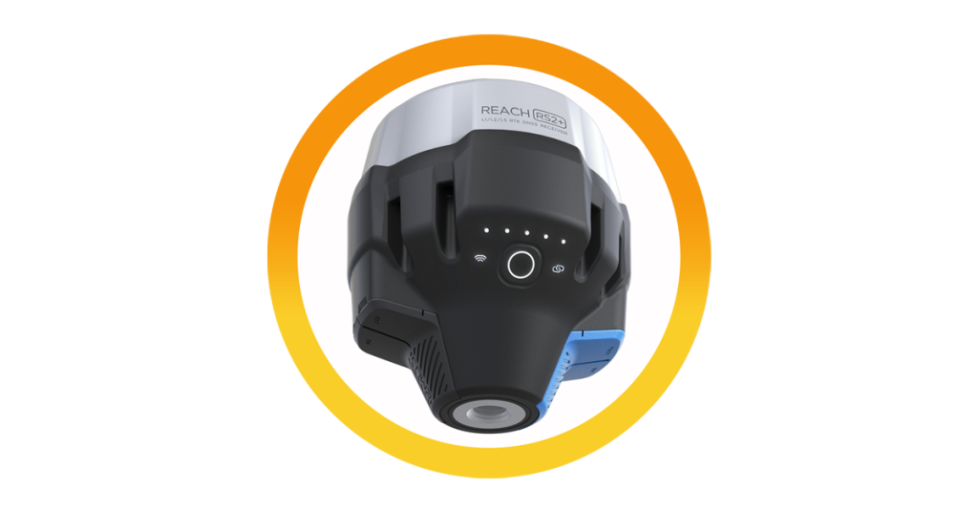

Reach RS2+
Reach RS2+ Fully featured RTK receiver for surveying
Multi-band RTK GNSS receiver with centimeter precision
For surveying, mapping and navigation.
Comes with a mobile app.
LTE modem
Baseline up to 100 km
Update rate up to 10 Hz
Key features
Gets a fix in seconds
GPS/QZSS, GLONASS
L1C/A, L2C, L1OF, L2OF,
BeiDou, and Galileo
RTK+2mm+0.3mm/”
Reach RS2+ gets a fixed solution in just seconds and maintains robust performance even in challenging conditions. Centimeter accuracy can be achieved on distances up to 60 km in RTK, and 100 km in PPK mode.
PPP support
16 GB storage
160+ days of logging at 1 Hz
Record raw positioning data in the RINEX format for further post-processing. RINEX logs are compatible with OPUS, AUSPOS, and PPP services, so you can get cm-precise results anywhere on Earth. For post-processing, you can use our free PPK software Emlid Studio.
Built-in LTE modem
Reach RS2+ features a power-efficient LTE modem with 2G/3G fallback and global coverage. Now corrections can be accessed or broadcasted over NTRIP independently, without relying on an internet connection on your phone.
22 hours on 1 charge
Up to 22 hours of autonomous work when logging data and up to 16 hours as an LTE rover, even in cold weather—no more need to carry spare batteries with you. Reach RS2+ can charge from a USB wall charger or a power bank over USB-C.
Technical Specs
Positioning
Precision
Static: H: 4mm+0.5ppm V: 8mm+1ppm
PPK: H:5 mm+0.5ppm V:10mm+1ppm
RTK: H: 7mm+1ppm V:14mm+1ppm
Convergence time: -5 s typically
Signal tracked: GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF,
BeiDou B1I, B2I, Galileo E1-B/C, E5b
Number of channels: 184
Update rate: Up to 10Hz
Mechanical
Ingress protection: IP67 water and dustproof
Dimensions: 126 x 126 x 142mm
Weight: 950g
Operating temperature: -20C to+65℃
Electrical
Autonomy:16hrs as LTE RTK rover
Charging: USB-C 5V 3A
External power input:6–40V
Battery: LiFePO4 6400mAh, 6.4V
Connectivity
UHF LoRa radio
Frequency range: 868/915MHz
Power: 0.1V
Distance: Up to 8km
LTE modem
Regions: Global
Bands: FDD-LTE:1,2, 3, 4, 5,7,8, 12, 13, 18, 19, 20, 26, 28, 66
TD-LTE: 38, 40,41
UMTS (WCDMA/FDD): 1, 3,2, 4, 5,6, 8, 19
Quad-band,
850/1900,900/1800MHz
SIM card: Nano-SIM
UHF radio
Receive-only*
Frequency range: 410-470MHz
Protocol: TRIMTALK 4505″
Modulation type: GMSK
Wi-Fi: 802.11 b/p/n
Bluetooth: 4.0/2.1 EDR
Ports: RS-232, USB Type-C
Data protocols:
Corrections: NTRIP. RTCM3
Position output: NMEA, LLH/XYZ
Data logging: RINEX, NMEA, LLH/XYZ, UBX
Internal storage: 16G
Technical Specs Communuications & Data storage
- 9PIN port: RS-232, PPS, Event
- USB OTG
- LoRa technology:
Reliable link on up to 8km baseline
Configurable 862–1020MHz carrier - Internal LTE modem:
Global, Quad-band (850/1900, 900/1800MHz) - Built-in short-range Wi-Fi 802.11 b/g/n, WEP, WPA, WPA2
encryption
- Built-in short-range Bluetooth 4.0/2.1 EDR
- Data storage 16GB internal memory
- External Radio Modem connectivity over RS-232/USB OTG
- RTCM 3.x input and output over Wi-Fi, Bluetooth, LoRa, USB,
RS-232, NTRIP - NMEA 0183, ERB output over Wi‑Fi, Bluetooth, USB, RS-232
- Emlid Flow app for iOS and Android for configuration
and surveying
